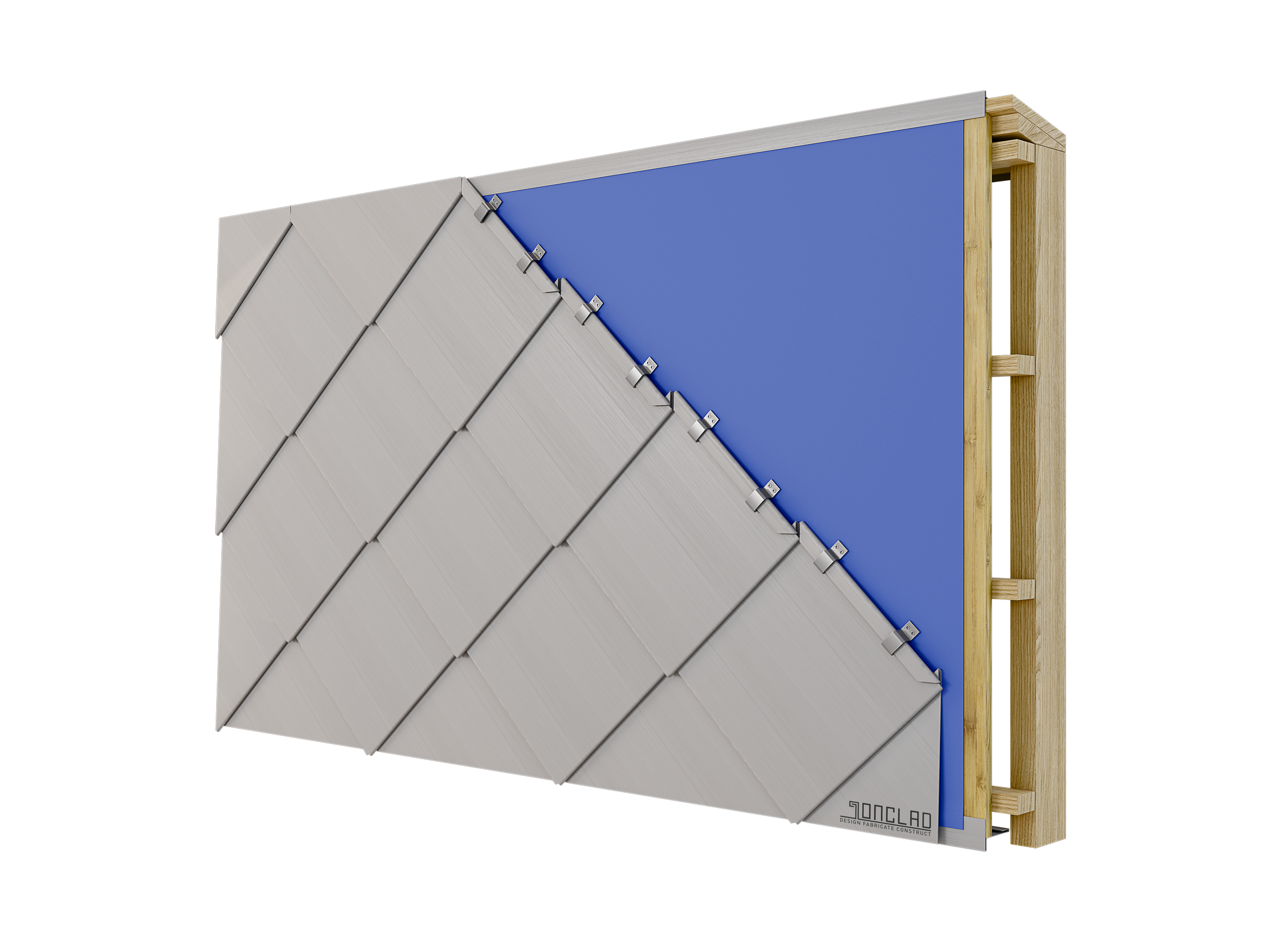

FLAT LOCK PANELS / SHINGLES
Flat lock offers creative flexibility in any shape, size, or pattern. This system can be installed with either a recessed seam to give a sleek, thin aesthetic, or an express seam for a deeper, bolder effect. Flat lock shares the same design as the shingle system.
Uses
Façade, soffit.
Roofing requires a minimum roof pitch of 22 degrees.
System features
Available in either recessed or express seam.
7mm deep face, creating a thin, flexible and elegant system.
Customisable to a range of shapes, sizes and widths.
Panels can be installed vertically, horizontally or diagonally.

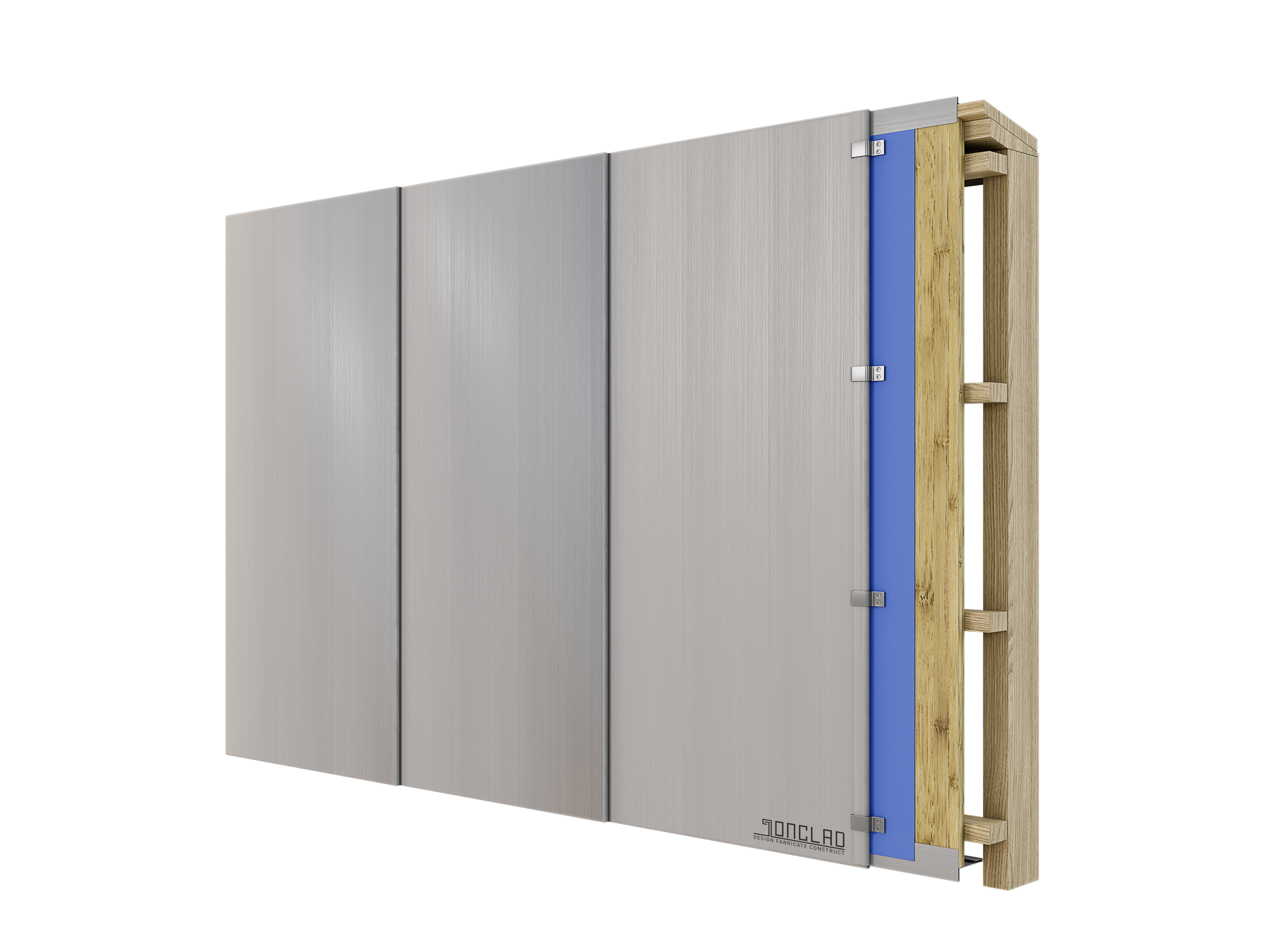

System build up
Plywood substrate is fixed to continuous studs or battens at 600mm centres.
Breathable and waterproof membrane underlay.
Stainless steel flat-lock clips.
