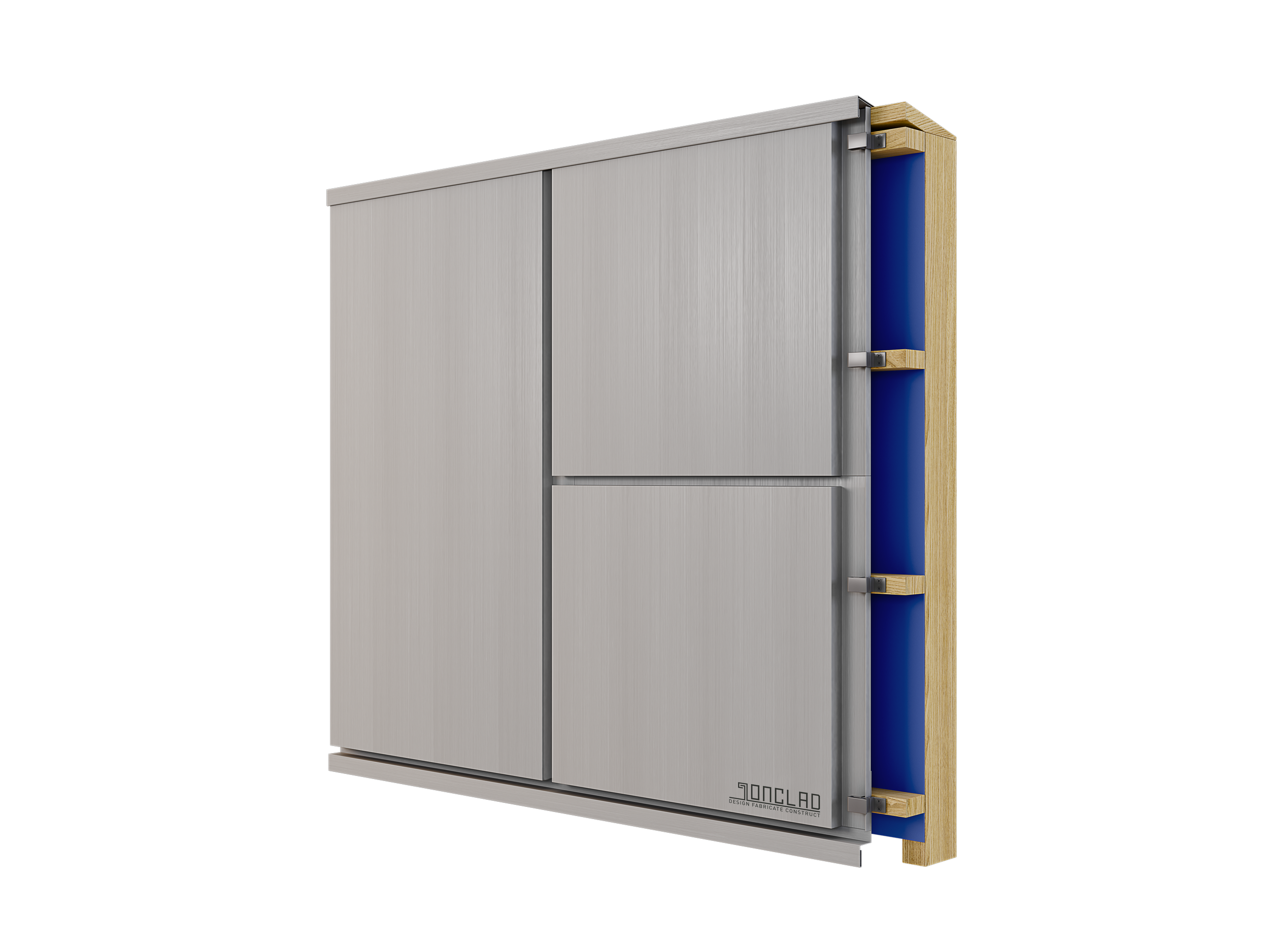

H25 Cassette panels are similar in appearance to interlocking panels; however, they allow for larger-scale panels by using a thicker gauge material and extrusion clips. With a simple fold design fabrication, larger dimensions become possible.

CASSETTE PANELS

Uses

  • Façade, soffit.

System features

  • Custom, large panel widths possible.

  • Negative joint depth of 25mm.

  • Express joint shadow line of either 15mm or 20mm.

  • Panels are concealed fixed with aluminium extrusion clips.

  • Naturally ventilated system.

  • Panels can be installed vertically or horizontally.

System build up

  • Breathable and waterproof membrane underlay.

  • Battens fixed to subframe at 600mm centres.
